Color Coated Sheet
We are a manufacture factory of prepainted coils from CHINA and have a annual output of 150,000MT.Commodity:Prepainted color hot-dip galvanized steel sheet in coil;According Standard: JIS G3312; EN 10142 DX51D, ASTM A653.Substrate Metal: Hot-dipped galvanized steel sheet in coil,Regular Spangle,Zinc Coating Mass of substrate metal:100g/sq.m, 120g/sq.m, 150g/sq.m, 180g/sq.m, 275g/sq.m.Specification: (Thickness)0.14mm-1.0mm*(Width)610mm-1250mm*C;Coil I.D: 508mmParking: Waterproof paper and galvanized steel protection cover and steel strip packed;Colour : RAL COLOUR, snow white,white grey,sea blue,sky blue,ivory white,dark red and dark green(To be confirmed at the time of ordering);Paint Film: Total 20-25 Micrometer ( Both Side);Finish Coating: Regular Polyester, Primer: Epoxy Resin, Backer: Epoxy Resin.If you have any demand,we are glad to offer anytime.
Thanks for your attention!Firstly,please allow me to introduce our company for your reference, We are a manufacture factory of prepainted coils from CHINA and have a annual output of 150,000MT.Commodi
We are a PPGI manufacturer located in LANGFANG city(just on the middle of beijng and tianjin city). we have 2 products lines with a anuual capacity of 150,000.00 metric ton The thickness is 0.14-1.0mm
We are a PPGI manufacturer located in LANGFANG city(just on the middle of beijng and tianjin city). we have 2 products lines with a anuual capacity of 150,000.00 metric ton The thickness is 0.14-1.0mm
The Yueyo color catalog is born to facilitate business in the color coated steel industry. This color catalog saves color matching time for both parties.

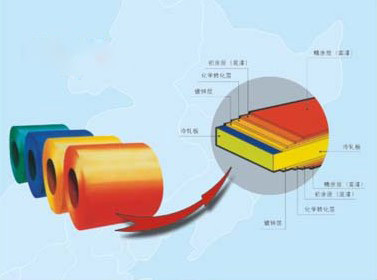

The substrate metal of color coated sheets are various alloy-coated steel coils. After a series of treatments, such as de-greasing, cleaning and chemical transformation, the substrate metal is coated
1) Sheet thickness: 0.14 - 1.0mm2) Sheet width: 800 - 1,250mm3) Inner diameter: 508mm or 610mm4) Color:a) According to customer`s sampleb) According to Yueyo color catalogc) According to RAL color cat
The substrate metal of color coated sheets is various alloy-coated steel coils. After a series of treatments, such as de-greasing, cleaning and chemical transformation, the substrate metal is coated b
1) Sheet thickness: 0.14 - 1.0mm2) Sheet width: 800 - 1,250mm3) Color:a) According to customer`s sampleb) According to Yueyo color catalogc) According to RAL color catalog
