LKB8 Mini Circuit Breaker
LKB8 (L7) series high breaking capacity circuit breakers with the function of isolatepower supply are applied in electric circuits or devices for protecting overloadand short circuit.Specifications:1) Electric standard: EN60898 (IEC898), GB10963, CCC2) Rated voltage: 230/400V; 50/60Hz3) Rated breaking capacity: 10KV, IEC898 (1-63A)4) Direct current breaking capacity: max. 48V (LKB7, 10KA) 1P, max. 250V (LKB7 DC, 6KA) 1P5) Release character: B, C, D type6) Operated ambient temperature: -5 to +40°C7) Life:a) Electric: all of 8,000 times breakingb) Mechanical: all of 8,000 times breaking
The LKL1(ID) RCCB provides the function of isolation, switching and earth leakageprotection of circuits. It has a residual current operated electromechanical release. It operates without any auxiliary

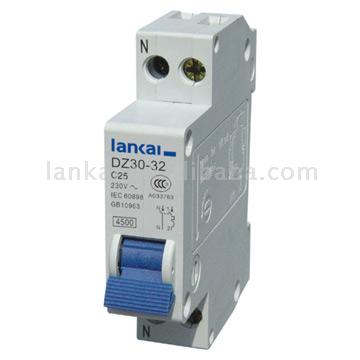

DZ30-32 high breaking capacity mini circuit breaker:DZ30-32 series mini circuit breaker is mainly used in AC 50HZ or 60HZ, rated 230V, rated current to 32A for overload and short-circuit protection as
Product Name: DPN Series Mini Circuit BreakerModel Number: DZ30-32Place of Origin: ChinaDZ30-32 high breaking capacity mini circuit breaker:DZ30-32 series mini circuit breaker is mainly used in AC 50H
LKB5 high breaking capacity mini circuit breaker:Power: AC 50 / 60HzRated voltage: 230VRated current: 23AUsed for overload and short-circuit protection and device leakage protection. Also used for unf

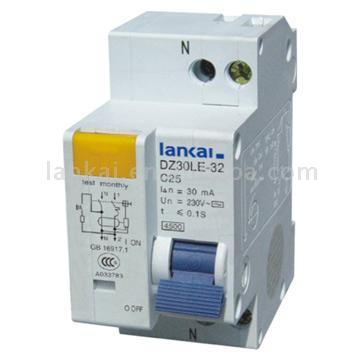

Product Name: DZ30L-32 (DPNL) Residual Current Circuit BreakerModel Number: DZ30L-32Place of Origin: ChinaLKB5 high breaking capacity mini circuit breaker:Power: AC 50 / 60HzRated voltage: 230VRated c

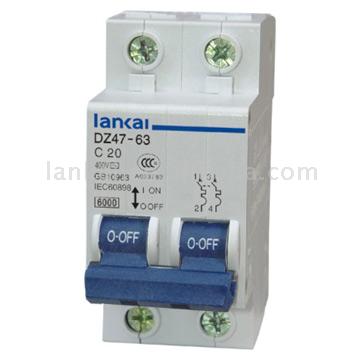

DZ47-63 high breaking capacity mini circuit breaker is used in AC50/60Hz, rated voltage of 230V3, 4 poles 400V, rated current to 63A for overload and short-circuitprotection as well as for unfrequente
Product Name: DZ47 Mini Circuit BreakerModel Number: DZ47-63Place of Origin: ChinaDZ47-63 high breaking capacity mini circuit breaker is used in AC50/60Hz, rated voltage of 230V3, 4 poles 400V, rated

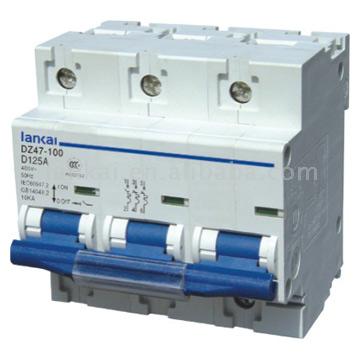

DZ47-100 series high breaking capacity mini circuit breakers are mainly used in thelighting distribution system. They are also used in unfrequented switching devicesand lighting circuit under normal c
Product Name: DZ47-100 Series Mini Circuit BreakerModel Number: DZ47-100Place of Origin: ChinaDZ47-100 series high breaking capacity mini circuit breakers are mainly used in thelighting distribution s
