Fuses, Fuse Switch and Fuse Bases

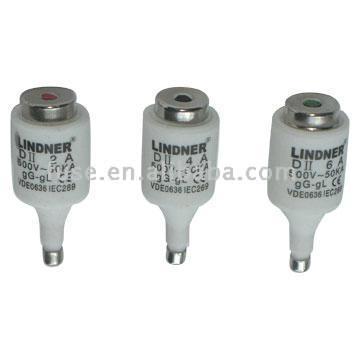

Product Name: Fuses, Fuse Switch and Fuse BasesPlace of Origin: ChinaFeatures:1) Diazed fuse links and silized:a) Model number: DI, DII, DIII, DIV, DVb) Original DIZD fuse links 500V AC / DCc) Utilization categories: gL to VDE, gI to IEC (in picture GG)d) Time-delay to CEE 16e) Rated voltage: 500V AC / DCf) Rated breaking capacity: min. 50kA AC, 18KA DCg) Standard specification: DIN VDE 0636, IEC publications 241 and 269 CEE16h) Dimension to DIN 49515i) Marking: gL, gI (gG), aRj) Include time delay and quick responsek) Fuse link: DI 2A-25A, DII 2A-25A, DIII 35A-63A, DIV80A-100A, DV125A-200A2) HRC NH fuse links and bases:a) Model number: NH00, NH1, NH2, NH3b) LV HRC NH type fuse linksc) Rated voltage: 500V ACd) Rated breaking capacity: 120KAe) Standard specification: VDE 0636, IEC 269-2-1f) Marking: gL-gG, aMg) Fuselink:i) NH00C 2A-100Aii) NH00 4A-160Aiii) NH1 80A-250Aiv) NH2 125A-400Av) NH3 315A-630Ah) Fuse base:i) NH00 1 pole 3 poleii) NH1 1 pole 3 poleiii) NH2 1 pole 3 poleiv) NH3 1 pole 3 pole4) Cylindrical fuses:a) Cylindrical contact cap fuse links with strikers and cylindrical contact capswithout strikersb) Rated voltage: 500V AC; Rated current: up to 125Ac) Size: 5 x 20, 6 x 25, 6 x 23, 8 x 23, 10 x 25, 8 x 31, 10 x 31, 8 x 36,10 x 38, 14 x 51, 22 x 58, 30 x 57.5d) Rated breaking capacity: 100KAe) Standard specification: IEC60269-2-1, NEC63-210, EN60269-2-1f) Class: gL, gGg) With or without strikerh) Characteristics: motor starting dutyi) Standard specification: VDE 0636, IEC 269j) Class: aMk) Quick responsel) Standard specification: VDE0636, IEC 2694-1m) Class: gR, aR5) Fuse switch-disconnector / fuse isolator:a) Suitable for 160A-630Ab) Can be divided into 1P, 2P, 3Pc) 160A suitable for NT00d) 250A suitable for NT1e) 400A suitable for NT2f) 630A suitable for NT3
Product Name: BS1361 FusesModel Number: 13APlace of Origin: ChinaFeatures:1) UK BS1363 type2) 3A, 5A, 10A and 13A fuses available3) Tailor-made to your specifications to suit your market requirements
Product Name: ClampModel Number: CKBPlace of Origin: ChinaFeatures:1) Main line: insulated Cu or Al2) Tap line: insulated Cu or Al3) Watertight connector: can withstand 6kV flashover in water4) Insula
Features:1) Compound insulators have high electrical performance, and silicon rubbersleeves are the good hydrophone and have water floating capacity, heavypollution resistance, can prevent flashover d
Features:1) Compound insulators have high electrical performance, and silicon rubbersleeves are the good hydrophone and have water floating capacity, heavypollution resistance, can prevent flashover d
Product Name: Cut Out FuseModel Number: 60, 100A Cut OutPlace of Origin: ChinaFeatures:1) 60: 1P suitable for fuse link 22 x 582) 100: 1P 1P+N 3P+N suitable for fuse link 30 x 57.5
Product Name: DIAZED Fuse BaseModel Number: E27, E33Place of Origin: ChinaFeatures:1) Original DIAZED fuse links 500V AC / DC2) Utilization categories: GL to VDE, GL to IEC (in the future GG)3) Time-d
Features of original diazed fuse links (500V AC / DC):1) Utilization categories: gL to VDE, gI to IEC (in picture GG)2) Time-delay to CEE 163) Rated voltage: 500V AC / DC4) Rated breaking capacity: mi
