Информация о производителе
Компания:
Zhejiang Ante Meter Co., Ltd. |
| |
Адрес:
439 West Anding Rd., Wenxi, Qingtian, Lishui, Zhejiang, China (Mainland) Zip: 323903 |
| |
Телефон:
+86-578-6751777 +6751885 |
|
.

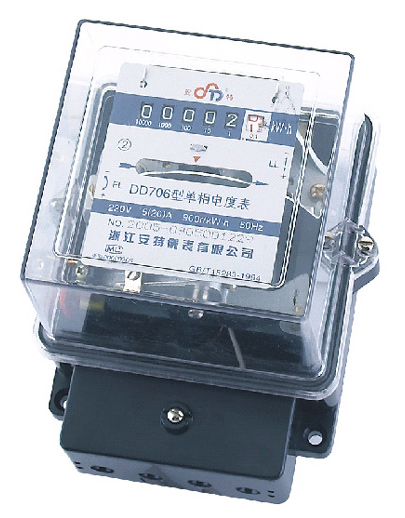

DD706 single phase type meter is used to measure electric power in single-phase 50Hz or 60Hz AC circuit. It should be fixed to use with the limited working temperature of -30~+55°C. The relative humidity should not exceed 95% and without the corrosive gas and salty spray in the air. It designed as per the technical of Osaki and Japan. Its dimension is specially designed for export.Structure:1. Case: base with terminal block completely, steel base or bakelite base, transparent glass cover or transparent PC cover, extended steel or PC terminal cover2. Bearing: magnetic bearing or double-jewel bearing3. Register: wheel type, five or six digitals, has the function of unidirectional, jumping, return to zero setting, low friction design4. Frame: molded aluminum alloy5. Braking component: Al, Ni, Co double pole magnet, adjusting screw divides magnetic6. Driving component: set-in sheet type voltage steel core, steel yoke rivet type the voltage element and current element, slide resistance type phase adjustment, adjusting screw type light load adjustment7. It is designed as per the technique of Osaki and Japan with reasonable construction, beautiful appearance, stable and reliable performance, low consumption, and high overload of 6 times loadTechnical parameter:1) Accuracy class: class 22) Reference voltage: 110V, 120V, 220V, 230V, 240V3) Frequency: 50 or 60Hz4) Basic (max. rated) current: 4 times meter: 1.5 (6) A, 2.5 (10) A, 5 (20) A, 10 (40) A, 15 (60) A5) 6 times meter: 2.5 (15) A, 5 (30) A, 10 (60) A6) Voltage circuit consumption: ≤1W, 6VA7) Current circuit consumption: 2.5VA8) Basic rotating speed: 16.5r/min for 4 times meter 13.2r/min for 6 times meter9) Torque: 4.5x10-4 N.m10) Weight of meter: 1.2kg
|
