Информация о производителе
Компания:
Wuxi Lianying Electric Equipment Co., Ltd.

Адрес:
Xianhe Village, Xuelang Town, Wuxi, Jiangsu, China (Mainland)

Телефон:
+86-510-85190710

.

Water-water heat exchanger consists of front water chamber, pipe, canister and back water chamber. The heat exchanging tubes are connected by tenacity expansion and seal welding. An anti-dashing board is installed on entrance tube of water-water heat exchanger to prevent closed water from impacting the heat exchanging tubes directly.A guide rail is installed on the right tube bundle to reduce the friction resistance when the bundle is inserted into or pulled out from the canister. Inspection holes are designed on the front and back water chambers for checking and removing the rubbish and sand sludge in the chambers and for checking blockage in the tubes. Temperature and pressure measurement points are designed on both primary and secondary water inlet and outlet for checking the operation of water-water heat exchanger. Also, gas and water discharge ports are designed.A safety valve is installed on the shell side of water-water heat exchanger to avoid any overpressure due to water expansion by heating when inlet/outlet valve is closed.
ОтложитьОтложить товар сайт производителяСайт производителя
336x280 banner
336x280 banner
Другие товары этого производителя :
Водо-водяной теплообменник
 Water-Water Heat Exchanger (Водо-водяной теплообменник)
Water-water heat exchanger consists of front water chamber, pipe, canister and back water chamber. The heat exchanging tubes are connected by tenacity expansion and seal welding. An anti-dashing board
Настройка Baffle закрылков
 Adjustment Baffle Flap (Настройка Baffle закрылков)
Adjustment baffle flap is designed into a solid welded structure punched by steel sheet and consists of five components, such as external framework, baffle vanes, bearing, axis sealing mechanism and b
Настройка Baffle закрылков
 Adjustment Baffle Flap (Настройка Baffle закрылков)
Adjustment baffle flap is designed into a solid welded structure punched by steel sheet and consists of five components, such as external framework, baffle vanes, bearing, axis sealing mechanism and b
Бойлер Start-Up Drain Flash судов

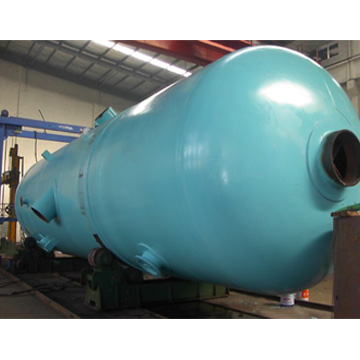

 Boiler Start-Up Drain Flash Vessel (Бойлер Start-Up Drain Flash судов)
Boiler Start-Up Drain Flash Vessel is used to receive the max. trapped water amount during boiler start up and other trapped water discharge from the boiler scope, including superheated trapped water,
Бойлер Start-Up Drain Flash судов
 Boiler Start-Up Drain Flash Vessel (Бойлер Start-Up Drain Flash судов)
Boiler Start-Up Drain Flash Vessel is used to receive the max. trapped water amount during boiler start up and other trapped water discharge from the boiler scope, including superheated trapped water,
Грубый порошок Сепаратор

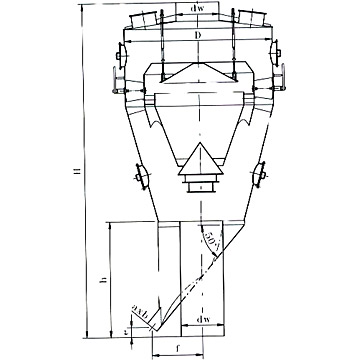

 Coarse Powder Separator (Грубый порошок Сепаратор)
Since 90th, many companies have followed up foreign experiences by changing the original radius coarse powder separator to axis coarse powder separator. The tremendous increase of the height and volum
Грубый порошок Сепаратор
 Coarse Powder Separator (Грубый порошок Сепаратор)
Since 90th, many companies have followed up foreign experiences by changing the original radius coarse powder separator to axis coarse powder separator. The tremendous increase of the height and volum
Cold / горячего воздуха Изоляция дверей
 Cold/ Hot Air Isolation Door (Cold / горячего воздуха Изоляция дверей)
Main features of isolation door structure:1. The door board is opened, closed and locked under electrical interlocking control. When the air channel is closed (press the button to close the door), the
Cold / горячего воздуха Изоляция дверей
 Cold/ Hot Air Isolation Door (Cold / горячего воздуха Изоляция дверей)
Main features of isolation door structure:1. The door board is opened, closed and locked under electrical interlocking control. When the air channel is closed (press the button to close the door), the
