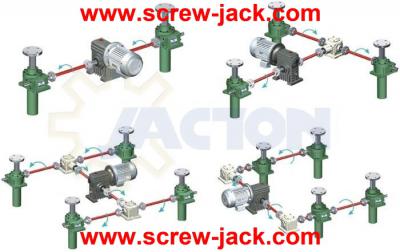

acme screw drive system,lead screw drive system,worm gear drive system include bevel gearboxes, screw jacks, electric motor, gear reducer, hand wheel, pillow block bearing, jaw couplings and line shaftings. Compared to fast speed hydraulic lifting system and pneumatic lifting system, screw jack lift system is not only for the simple load-supporting from several kilograms to heavy duty several hundreds tons, but also have many advantages such as self-locking without brake or locking mechanism, precisely positioning, full synchronization, manual operated or electric motor driven, multiple screw jacks arrangments, easy installation and operation, maintenance free.Screw jack lift system has another advantage, clients can purchase a complete set screw jack lift system from us, include all the lift system accessories, even if special voltage electric motor/gearmotor. Before clients orders, our engineers provide 2D CAD drawing for final confirmation, It helps clients saves much times in design, drawing, sourcing and assembly.Screw Jack Lift System EfficiencyTwo screw jack lift system, "L", I and T configuration,, transmission efficiency 95% Three screw jack lift system, I and T configuration, transmission efficiency 90%Four screw jack lift system, H, U and T configuration, transmission efficiency 85%Six screw jack lift system, 2H and U configuration, transmission efficiency 80%Eight screw jack lift system, 2H and H configuration, transmission efficiency 80%Notes: don't ignore bevel gearbox efficiency 98%Screw Jack Lift System ApplicationScrew jack lift system is used in theatre stage lifts, sheet steel and steel pipes production lines, coil sheet slitter lines, paint coating lines, rewinding lines, pickling lines, cut to length lines, continuous hot dip galvanizing lines, spray infeed conveyor lift systems, wood working machines, plastics processing machines, textile machines, assembly equipment in the automobile and aircraft industries, food and beverage production equipments, packaging machines, adjusting synchronous coil feed lines rolls, feeder levelers and railway maintenance lifting platform.Note: several independent motorized screw jack together constitute a screw jack lift system, considering full synchronization, if power source is three phase asynchronous motor, must be controlled with PLC (Programmable Logic Controller). Or use servo motor driven screw jacks.
Acme screw drive vertical platform lift, heavy lifting platform 50 ton include bevel gearboxes, screw jacks, electric motor, gear reducer, hand wheel, pillow block bearing, jaw couplings and line
acme screw jack, lead screw jack, acme thread screw jack, worm lift features:1. Load capacity 2.5KN, 0.5 ton, 1 ton, 2 ton, 2.5 ton, 3 ton, 5 ton, 10 ton, 15 ton, 20 ton, 25 ton, 30 ton, 35 ton, 40 to
automobile steering 90 degree miter box,automobile steering right angle gearbox features:1.90 degree angle assembly spiral bevel gears.2.Used to transmit rotary motion, mechanical power and torque.3.H
ball screw backdrive,ball screw drive,ball screw jack electric cylinder features:1. Lifting force 5kN to 500kN. Under max. lifting force, input shaft required torque, high ratio 1.3Nm to 318Nm, l
Ball screw driven linear actuators, Linear motion Ball screw drive features:1. Lifting force 5kN to 500kN. Under max. lifting force, input shaft required torque, high ratio 1.3Nm to 318Nm, low ra
ball screw jack, ball screw actuator, ball screw ball nut features:1. Lifting force 5kN to 500kN. Under max. lifting force, input shaft required torque, high ratio 1.3Nm to 318Nm, low ratio 0.62Nm to
ball screw jacks 2 ton, Ball screw driven linear actuators features:1. Lifting force 5kN to 500kN. Under max. lifting force, input shaft required torque, high ratio 1.3Nm to 318Nm, low ratio 0.62
ball screw lift table, ball screw scissor lift table, precision lift table include bevel gearboxes, screw jacks, electric motor, gear reducer, hand wheel, pillow block bearing, jaw couplings and
ball screw lift tables, heavy duty linear table, self locking table include bevel gearboxes, screw jacks, electric motor, gear reducer, hand wheel, pillow block bearing, jaw couplings and line sh
