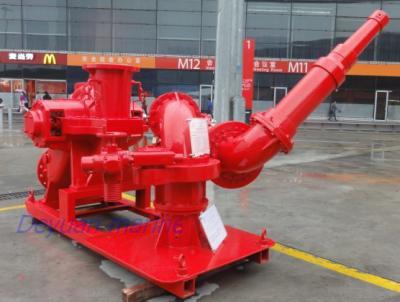

Driven by:Diesel engine. The fire pump and engine will be installed on a common base.Consisting of: 1) Fire Pump:2 sets Type: Horizontal, single stage, centrifugal pump Duty Specified Capacity: 600 m3/h Total Head: 130 m L.C. Speed: 2100 rpmPower absorbed : 273.6 kW (Seawater) Efficiency: 80% Discharge : Top, DN200 PN 25 Suction: End, DN250 PN 16 Direction of rotation: CW (viewing from driver end)Materials of Construction Casing: Nodular cast iron Impeller: Bronze Shaft : Stainless steel AISI 316 Packing: Soft packed 2) Diesel Engine:2 sets Engine Model:TBD234V8, China Type:4 Cycle, 8 Cylinder, electrical start, 24VDCRating Type:Heavy Duty Rated Engine Power:323kw @ 2100 rpm Direction of rotation:CCW (viewing from driver end) 3) High Flexible Coupling Mounted between PTO of diesel engine and pumpFinal model to be selected by maker.
Product Details:Material: Cu1,Cu3,bronze,copper.Dimension: Based on your requirement.Cu-1 contains Zinc,Bronze,Iron,Manganese, but Nickle and Aluminium is not included.Cu-3 contains Nickle,Aluminium,B
China deyuan marine fitting Co., ltd are leading supplier of anchor, anchor windlass , anchor chain, made of Grade 2 and Grade 3 steel diameter from 12.5mm to 60mm , accessories, and ship mooring equi
China deyuan marine fitting Co.,ltd are leading supplier of anchor, anchor windlass,anchor chain, made of Grade 2 and Grade 3 steel diameter from 12.5mm to 60mm , accessories, and ship mooring equipme
China deyuan marine fitting Co., ltd are leading supplier of anchor, anchor windlass, anchor chain, made of Grade 2 and Grade 3 steel diameter from 12.5mm to 60mm , accessories, and ship mooring equip
The IMO Res. MEPC107(49) resolution regulates the design and performance of the oily water separators and the 15 ppm Bilge Alarms for machinery space bilges of ships. Each ship must have a certified 1
YWC Series 15ppm Bilge Separator (15ppm Bilge Separator) is a kind of environmental protection product designed based on International Maritime Organization IMO MEPC 107(49) standard, the oil content
YWC Series 15ppm Bilge Separator (15ppm Bilge Separator) is a kind of environmental protection product designed based on International Maritime Organization IMO MEPC 107(49) standard, the oil content
China deyuan marine fitting Co.,ltd are leading supplier of anchor, anchor windlass,anchor chain, made of Grade 2 and Grade 3 steel diameter from 12.5mm to 60mm , accessories, and ship mooring equipme
China deyuan marine fitting Co.,ltd are leading supplier of anchor, anchor windlass , anchor chain, made of Grade 2 and Grade 3 steel diameter from 12.5mm to 60mm , accessories, and
