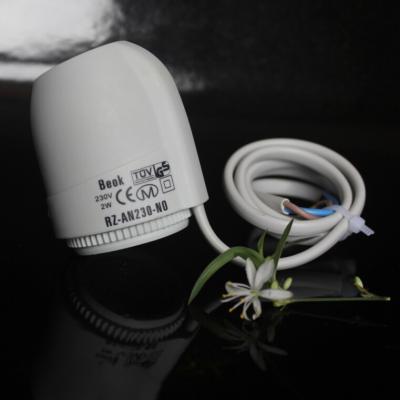

Product Description:RZ-AN 230 thermal actuator is a two point form switching devicewhich has been tested by TUV. It is usually applied to controlradiator, floor heating system or zone valves. It can automaticallyclose the flux of system under the control of room thermostat andother electrical switch. This model only can be used as on-offadministrator.It can make Normally- Closed and Normally-Open  Operating Principle1. When the power is on, the valve will be opened by the expand ofmetal elements.2. When the power is off, the equipment (actuator and valve) willalso be normally closed.3. When one room thermostat is running, it can give ON/OFF signalto actuator to open or close the valve Technical Data:Model RZ-AH 230Working Voltage 230VAC±10%Initial Current About 50MAPower Consumption 2WProtection Grade:IP41Working Journey:≥4.5~5.0mmWorking Temperature:-20 ~ 50℃Storage Temperature:-20~50 ℃Security Class:II(Double Insulation)Cable Length:80cmRunning Time:180seconds (open-closed)CE Standard:EN61000-6-3;EN61000-3-2
