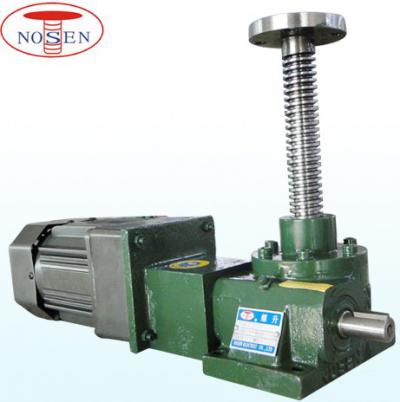

Electrically Drive Screw Jack Detailed Informations:For easy installation, Every type worm gear screw jack can be directly connected with electric motors by motor flange. Motor mounts allow direct coupling of the motor shaft with either the right or left side jack input shaft. All mounts come with necessary hardware and coupling keys. All standard electric motors are 3 phase, 380VAC, 50 Hz, 1440 rpm. Special motor electricity systems like 110~460VAC, 50/60Hz, Single/Three Phases or 24VDC, we can make them follow clients' order.About motor drive power, please check the worm gear screw jack specification table. Operating horsepower does not less than the datas on the specification table. The lifting speed depends on the use of screw jack, the control of motor speed is necessary. Electric motor drive revolutions are not exceed 1800 RPM.Lifting Speed Formulas: V=R1*P/R2V=R1*TV :lifting speedR1:input RPMP :screw pitchR2:gear ratioT :travel stroke per revolutionExample, 4 poles(1500 rpm) electric motor,jacks model RN-0.5T-1/5(1 turn 1 mm travel),screw pitch 5 mm.V=1500*5/5=1500 mm/minV=1500*1 mm travels per turn=1500 mm/minDid Projects:Sluice gate in hydroelectric dam,Powered straighteners,Precision levelers,Solar tracking jack systems,Large satellite dish antenna movements,Slitting line,Roll forming machines,Tunnel freezer systems,Oven lifters,Vacuum furnace lid lifters,Conveyor lifts,Air dampers,Theatre stages,Glass charging machines,Steel manufacturing mills,Cold/Hot rolling mills,All tube mills.
We exported heavy duty screw jacks for sluice gate projects,with Vietnam clients,Georgia clients,Greece clients,Russian clients,Armenia clients etc.Many programs for the operation of canals that deliv
Gear Jack Features:1.Model:RN-0.5T,RN-1T,RN-2T,RN-3T,RN-5T,RN-10T,RN-15T,RN-20T,RN-30T,RN-40T,RN-50T,RN-100T2.Function: precisely controlled lifting,lowering,pushing,pulling and rolling movements3.Sel
We exported several thousands screw jacks to Spanish clients & Canada clients.Common to most motorized screw jacks used for solar tracking system are the following elements:1. Keyed(anti-rotation)
Hand Wheel Screw Jack detailed informations:A hand wheel is a convenient solution for manual operated a screw jack or screw jack systems. When using screw jacks in intermittent positioning application
NOSEN new Europe-type machine screw actuators RNF-Series is popular on the world market with below features: 1. Same dimensions with ZIMM, Pfaff-silberblau, Grob GmbH, Inkoma, Servomech, Unimec, Thoms
A hand wheel is a convenient solution for manual operated a screw jack or screw jack systems. When using screw jacks in intermittent positioning applications. Hand wheels are available in a range of d
Manual Worm Gear Screw Jack detailed informations:A hand wheel is a convenient solution for manual operated a screw jack or screw jack systems. When using screw jacks in intermittent positioning appli
Manually Operate Screw Jack detailed informations:A hand wheel is a convenient solution for manual operated a screw jack or screw jack systems. When using screw jacks in intermittent positioning appli
Motor Drive Screw Jack Detailed Informations:For easy installation, Every type worm gear screw jack can be directly connected with electric motors by motor flange. Motor mounts allow direct coupling o
