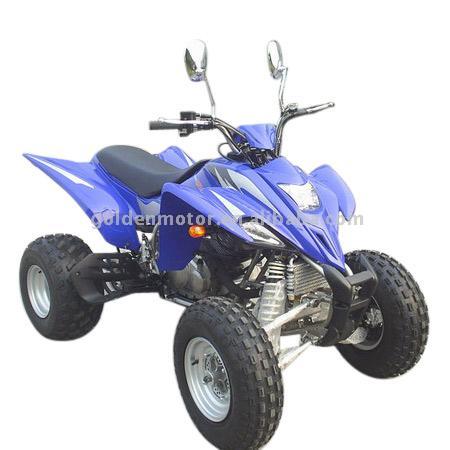

250cc EEC/EPA Raptor ATV, Double-plated Rim (Quad) (250cc ЕЭС / EPA Raptor ATV, дважды никелированная обода (Quad))

Увеличить картинку

Отправить запрос

подробнее об услуге

Информация о производителе

Компания:
Ningbo Golden Motor Industry Group Co., Ltd.

Адрес:
Yinzhou Industry Garden, Ningbo City, Zhejiang Province. China

Телефон:
+86-574-87507516

.

L x W x H: 1,690 x 1,014 x 1,130mmWheel base: 1,178mmVehicle dry mass: 156kgRated loading: 260kgMax. speed: 70km/hBrake type (front/rear): double-disc, front & rearWheel rim type (front/rear): double-platedTyre spec. (Front/Rear): 19 x 7-8 31n/MT5.5, 18 x 9.60-8 31n/MT7.5Tyre pressure (front/rear): 225-250kPa/250-280kPaType: single cylinder, air-cooled, 4-strokeManufacturer: Hi-BirdBore x stroke: 63.5 x 49.5mmWork capacity: 197mlCompression ratio: 9.2:1Rated power/revolution: 10.8kW/7,500rpmMax. torque/revolution: 13.6N.m/6,500rpmFuel quality: RQ/93Lubrication mode: pressure plus splashLubricant quality: 10W/40fStart: electric start-upIgnition: CDI electric ignition

Отложить товар

Сайт производителя

336x280 banner

Другие товары этого производителя :

Полностью автономный 250cc ATV ЕЭС Approvel для 2 человек
	Overall Dimension LxWxH :1970mmx1050mmx1150mmDistance between axles 1260mmDistance between front wheels 860mmDistance between rear wheels 840mmGround clearance 150mmProper Mass of Empty Vehicle 240kgM

300cc 4 X 4WD ATV
	Specifications & parametersDimensionsOverall length 2070mmOverall width 1180mmOverall height 1280mmWheelbase 1265mmTrack front wheel 980mmRear wheel 950mmGround clearance 260mmUnloading mass 330kgLoad

300cc 4x4 ЕЭС Utility Go Kart
	Product Name: 300cc 4x4 EEC Utility Go KartModel Number: HDU300EPlace of Origin: China300cc utility ATV specifications:Dimensions:1. Product dimensions (mm): 2630123018902. Wheelbase (mm): 18003. Wh

300cc и 500cc автомобилями (300cc с ЕЭС / COC сертификации)
	300cc utility ATV specifications:Dimensions:1. Product dimensions (mm): 2630123018902. Wheelbase (mm):18003. Wheel span (mm): a) Fr: 1058 b) Re: 10704. Ground clearance (mm): 183Engine:5. Type: sing

300cc ATV с Судзуки двигателя (HDA300H)
	300cc ATVLength x Width x Height(mm):1840 x 1200 x 1175Wheelbase(mm):1230Engine type:300CC single,air cool,4 strokestart mode:electricalPower (kW/r/min):14.7KW/8000r/minMax-Torque (N.m/r/min):20.0N.m/

Suzuki 300cc ATV Off Road
	Length x Width x Height(mm):1840 x 1200 x 1175Wheelbase(mm):1230Engine type:300CC single,air cool,4-strokeStart mode:electricalPower (kW/r/min):14.7KW/8000r/minMax-Torque (N.m/r/min):20.0N.m/6000r/min

Suzuki 300cc ATV Off Road
	Product Name: 300cc Suzuki Off Road ATVModel Number: HDA300HPlace of Origin: ChinaLength x Width x Height(mm):1840 x 1200 x 1175Wheelbase(mm):1230Engine type:300CC single,air cool,4-strokeStart mode:e

350/400cc Raptor ЕЭС / EPA ATV (QUAD)
	Vehicle length 1875mmVehicle width 1100mmVehicle height 1160mmWheelbase 1230mmHeight of the seat 830mmGround clearance 250mmTurning diameter 6000mmVehicle whole mass 190kgStartup performance: D15sMaxi

350cc, 400cc ATV, Raptor стиль с ЕЭС / EPA Омологация
	350cc ATV,400 ATV, with EEC homologationVehicle length 1875mmVehicle width 1100mmVehicle height 1160mmWheelbase 1230mmHeight of the seat 830mmGround clearance 250mmTurning diameter 6000mmVehicle whole
