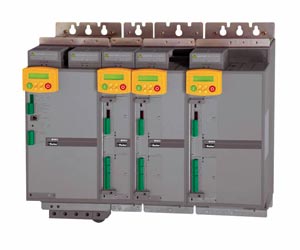

The AC890 is a compact, modular systems drive engineered to control speed and position of open-loop and closed-loop, single- or multi-motor AC induction or servo motor applications.The AC890CS power module is able toprovide dual output voltages to power one or more AC890CD or stand alone AC890SD drives connected to a common DC bus.This modularity provides significantspace saving in the enclosure.Technical specificationsPower supply :890CS: 208–500Vac ±10%Inverter(DC-AC)890CD: 320/560–705VdcConverter (AC-AC)890SD: 380–500Vac ±10% (Frames E thru K : 380–460Vac ±10%)Operating temperature :0–45°C (derate 2%/°C to 50°C max - frame sizes G thru K: 0–40°C)Maximum humidity85% non-condensingAltitude :1000m ASL (Derate 1%/100m 1000–4000m max)Degree of protection :IP20: Frame sizes B,C,D, E, FIP00: Frame sizes G, H, JIP52: Frame size KInputs/OutputsAnalog inputs :4 total, 2 configurable (0-10V, ±10V,0-20mA, 4-20mA), +2 configurable(0-10V, ±10V) Analog outputs :2 configurable (0-10V, ±10V) Digital inputs : 7 configurable (24V) Digital I/O :2 configurable (24V)Relay digital output:1 configurable (24V)3 additional 230V rated dry contacts (frames E-K)
