Permanent Magnet

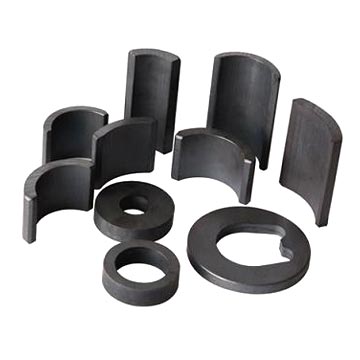

The most commonly produced material is neodymium-iron-boron (NdFeB). This group of magnetic materials provides the highest available magnetic energies of any material. NdFeB magnets allow small shapes and sizes with high magnetic fields. Energy product ranges from 26 MGOe to about 45 MGOe.Super-strength rare earth magnets - sintered NdFeB magnets, have the characteristics of:1) Extreme strong Br resident induction2) Excellent demagnetization resistance capability3) Good Price relative to its high magnetic properties4) Coating is needed for NdFeBSurface treatment method:1) Type information: metallic zinc, nickel, nickel + nickel, copper + nickel, nickel + copper + nickel gold, organic epoxy, nickel + epoxy coating2) Temporary surface: passivationBoth NdFeB and SmCo are available in sintered as well as bonded forms. Sintered NdFeB parts however, will produce the highest magnetic properties. NdFeB is sensitive to heat and should not be used in the environments that exceed 200. Bonded NdFeB are generally low in properties due to the special process of gluing the powder in a mold. The bonded form of the material can be produced with close tolerance off tools with little or no finishing required. The sintered form usually some finishing operations in order to hold close mechanical tolerances.
Applications:Copier and laser printer rollsPermanent motor magnets (rotors and other components)Magnetic rings for aerodynamic componentColor monitor / TV purity convergence magnetBonders:PA6, PA12, P

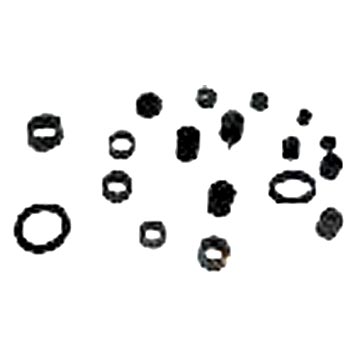

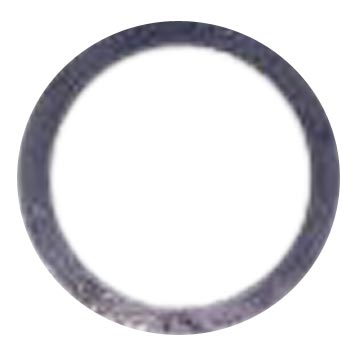

We have all specifications of cylinder magnets and they have already gain the national patent.Advantages of injection plastic bonded magnet:1. Having high dimensional precision2. Versatile shapes and
Punching parts are used in electroacoustic products. We can supply different specifications of punching parts as per customers` requests. You are welcomed to contact us for more information.
The most commonly produced material is neodymium-iron-boron (NdFeB). This group of magnetic materials provides the highest available magnetic energies of any material. NdFeB magnets allow small shapes
The most commonly produced material is neodymium-iron-boron (NdFeB). This group of magnetic materials provides the highest available magnetic energies of any material. NdFeB magnets allow small shapes
The most commonly produced material is neodymium-iron-boron (NdFeB). This group of magnetic materials provides the highest available magnetic energies of any material. NdFeB magnets allow small shapes

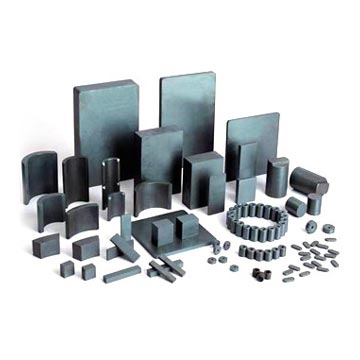

Our ferrite arc magnets are also widely applicable to other DC motors, such as power antennas, fuel pump motors, rear windshield wipe motors, power curtains, blower motors for air-purifiers, power sea
Our ferrite arc magnets are also widely applicable to other DC motors, such as power antennas, fuel pump motors, rear windshield wipe motors, power curtains, blower motors for air-purifiers, power sea
Our ferrite arc magnets are also widely applicable to other DC motors, such as power antennas, fuel pump motors, rear windshield wipe motors, power curtains, blower motors for air-purifiers, power sea
